16x560mm 1300lm 830 2T ADV, LED Linear Modules

Tridonic, LLE G4 16x560mm 1300lm 830 2T ADV, LED Linear Modules, Made In Poland, 5yrs Warranty

28001729

Colour Temperature :

Qty: Order Item Add to Wishlist

Ideal for compact linear luminaires designs, Homogenous illumination thanks to small package distance, SELV module, High efficency, long life time, Compact size.High CRI and Mecadam 3.
Tridonic is a world-leading supplier of lighting technology, supporting its customers with intelligent hardware and software and offering the highest level of quality, reliability and energy savings. As a global driver of innovation in the field of lighting-based network technology, Tridonic develops scalable, future-oriented solutions that enable new business models for lighting manufacturers, building managers, systems integrators, planners and many other types of customers. Tridonic has been Show More...
Quick Spec
Brief Description16x560mm 1300lm 830 2T ADV, LED Linear Modules
Colour FinishWhite
Item Nett Weight (kg)0.045kg

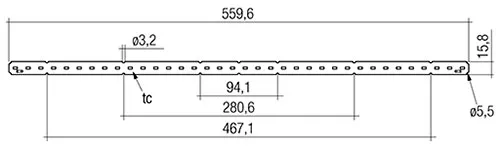

Length (mm)560mm
Width (mm)16mm
Height (mm)5.1mm
Cuttable Length (mm)100mm
Self AdhesiveNo
Energy ClassA++ to A
Lamp SocketIntegral LED
Recommended LampIntegral LED
Lamp IncludedYes - Integrated
Type of Lamp IncludedIntegrated LED
Brand of LampTridonic
Colour Temperature (K)3000K Warm White
Beam Angle (°)120°
System Flux (lm)1300lm
CRI>80
Driver IncludedNo
Type of Driver RequiredConstant Current
Protection ClassClass 3 - Low Voltage
DimmableYes - Dimmable Driver Required
IP RatingIP20
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
Features
Push terminals for quick and simple wiring of LED module to LED module.Perfectly uniform light, even if several LED modules are used together in a line.Colour temperatures 2700-6500K.Small luminous flux tolerances.Broad portfolio from extruded lenses and covers vailable.Simple installation via clips or screws.
Full Specifications
Collection GroupLLE
BarcodeTo Follow
Brief Description16x560mm 1300lm 830 2T ADV, LED Linear Modules
Colour FinishWhite
Item Nett Weight (kg)0.045kg
Length (mm)560mm
Width (mm)16mm
Height (mm)5.1mm
Cuttable Length (mm)100mm
Self AdhesiveNo
Materials UsedPolycarbonateB
Energy ClassA++ to A
Max Energy ClassA++
Min Energy ClassA
Lamp SocketIntegral LED
Recommended LampIntegral LED
Lamp IncludedYes - Integrated
Type of Lamp IncludedIntegrated LED
Brand of LampTridonic
Colour Temperature (K)3000K Warm White
LED Power (W)8W
Type of LEDSMD
Lumens Per Watt (lm/W)187lm/W
Lumen Maintenance (hrs)50000hrs / LM80
Beam Angle (°)120°
System Flux (lm)1300lm
CRI>80
MacAdam3
Driver IncludedNo
Type of Driver RequiredConstant Current
Dimming Range (%)0-100%
Load Range (W)7.5-17.7W
Ta (°C)-40° to +65°C
Tc (°C)85°C
Connection TerminalPush-Fit
Dimming ProtocolDepends on Driver
Protection ClassClass 3 - Low Voltage
Total Power Consumption (W)17.7W
Input Voltage (V)30.9-38.1V DC
Input Current (A)0.225-0.5A
DimmableYes - Dimmable Driver Required
IP RatingIP20
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
ENECYes
Number of Cartons1
Carton Length (cm)56.0cm
Carton Width (cm)1.6cm
Carton Height (cm)0.51cm
Carton CBM0
Carton Nett Weight (kg)0.045kg
Carton Gross Weight (kg)0.045kg
Additional DetailsTridonic, LLE G4 16x560mm 1300lm 830 2T ADV
UK Commodity Code8539510000
Country of OriginPoland
